My Emacs life is better with Hydra

Let's say that I want to split a window into 4 with equal size, I would need to run the following key strokes.

C-w v ; split vertically
C-w s ; split horizontally
C-w l ; navigate to the left window
C-w s ; split horizontally

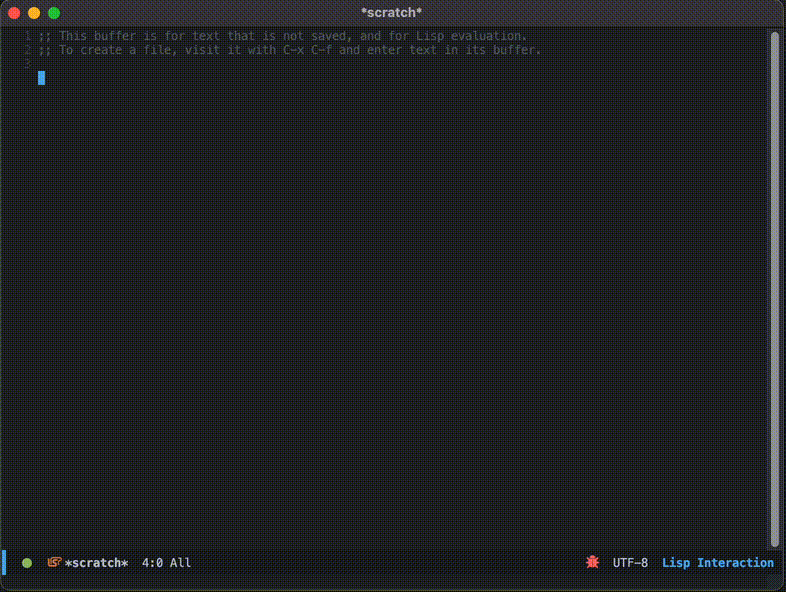

When I use Hydra the key strokes becomes like this.

C-w ; start hydra
v   ; split vertically
s   ; split horizontally
l   ; navigate to the left window
s   ; split horizontally

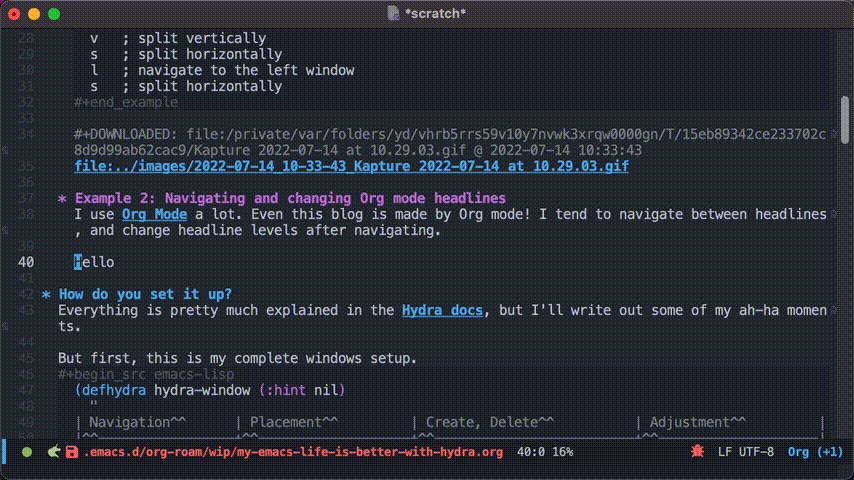

I use Org Mode a lot. Even this blog is made by Org mode! I tend to navigate between headlines, and change headline levels after navigating.

The documentation shows that you can setup key bindings in the first 2 arguments of the defhydra declaration.

This example creates the key binding of hydra-zoom to the global-map with the key <f2>.

(defhydra hydra-zoom (global-map "<f2>")
  "zoom"
  ("g" text-scale-increase "in")
  ("l" text-scale-decrease "out"))

This didn't work for me, probably because I have Evil Mode (Emacs) installed. I needed to setup the key bindings the usual Evil way.

(defhydra hydra-zoom ()
  "zoom"
  ("g" text-scale-increase "in")
  ("l" text-scale-decrease "out"))

(general-nmap 'global
  "<f2>" 'hydra-zoom/body)

You might notice that the key is bound to hydra-zoom/body and not hydra-zoom. This is because the defhydra macro does not create the hydra-zoom function. It creates a function called hydra-zoom/body instead.

After this setup, you should be able to invoke hydra-zoom with the f2 key.

Basic behavior can be set with the color option.

| color    | toggle                     |
|----------+----------------------------|
| red      |                            |
| blue     | :exit t                    |
| amaranth | :foreign-keys warn         |
| teal     | :foreign-keys warn :exit t |
| pink     | :foreign-keys run          |

The option behaves the following way.

• :exit: when it is set to t, exits Hydra state when key is pressed

• :foreign-keys: this describes the behavior when a key not defined in Hydra is pressed

  • nil: runs the command mapped to the key, and then exits Hydra state

  • warn: shows a warning message and does not run anything, and stays in the Hydra state

  • run: runs the command mapped to the key, but does not exit Hydra state


An example configuration will be something like this.

(defhydra hydra-zoom (:color amaranth) ; Sets the default color to amaranth
  "zoom"
  ("g" text-scale-increase "in")
  ("l" text-scale-decrease "out")
  ("q" nil "quit" :color blue) ; Overwrites the color to blue
  )

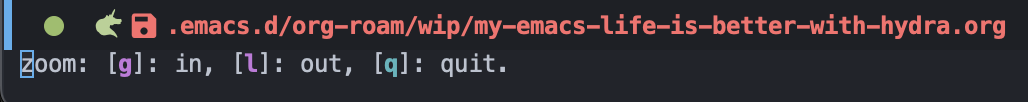

This will result in Hydra looking like this. You can see the colors! The keys behaves according to the chart above too.

The warning message looks like this.

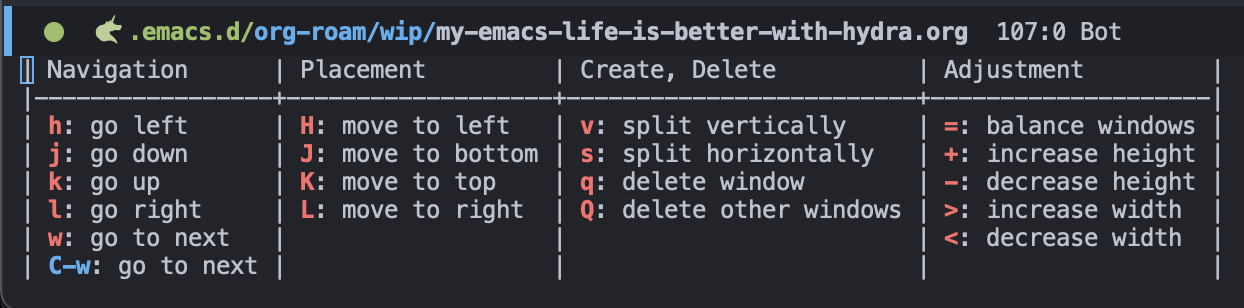

My window Hydra has this beautiful hint that is easy for me reference.

You can set this up with a special docstring defhydra. This is my window Hydra docstring.

(defhydra hydra-window (:hint nil)
  "
| Navigation^^      | Placement^^         | Create, Delete^^          | Adjustment^^         |
|^^-----------------+^^-------------------+^^-------------------------+^^--------------------|
| _h_: go left      | _H_: move to left   | _v_: split vertically     | _=_: balance windows |
| _j_: go down      | _J_: move to bottom | _s_: split horizontally   | _+_: increase height |
| _k_: go up        | _K_: move to top    | _q_: delete window        | _-_: decrease height |
| _l_: go right     | _L_: move to right  | _Q_: delete other windows | _>_: increase width  |
| _w_: go to next   | ^^                  | ^^                        | _<_: decrease width  |
| _C-w_: go to next | ^^                  | ^^                        | ^^                   |
"
  ...)

The special notations I use are

• _: when the key are surrounded by _, Hydra uses the appropriate color

• ^: character that becomes an empty string when Hydra shows the hint


You might wonder why I have the ^ notation everywhere. This is just to make the docstring clean. You can also write the hint without ^, but it would look a little crooked. The docstring below produces the exact same hint as the docstring above.

;; Without the ^ notations
(defhydra hydra-window (:hint nil)
  "
| Navigation      | Placement         | Create, Delete          | Adjustment         |
|-----------------+-------------------+-------------------------+--------------------|
| _h_: go left      | _H_: move to left   | _v_: split vertically     | _=_: balance windows |
| _j_: go down      | _J_: move to bottom | _s_: split horizontally   | _+_: increase height |
| _k_: go up        | _K_: move to top    | _q_: delete window        | _-_: decrease height |
| _l_: go right     | _L_: move to right  | _Q_: delete other windows | _>_: increase width  |
| _w_: go to next   |                   |                         | _<_: decrease width  |
| _C-w_: go to next |                   |                         |                    |
"
  ...)
